Weefaanduidingen
| stijf | zacht | |
|
|
Semitransparant | |
|
|
Polyester Trevira CS, met aluminium rug | |
|
|
170 g/m² | 190 g/m² |
|
|
0.36 mm | 0.50 mm |
|
|
235 cm | |
 | 240 cm | |
 | 8.9 cm, 12.7 cm, 240 cm | |
Technische eigenschappen
| stijf | zacht | |
|
|
5-6 | |
|
|
Alpha-w = 0.25 | |
|
|
Vlamvertragend | |
|
|
Geoptimaliseerd voor werkstations | |
|
|
Lage warmtetransmissie | |
|
|
Digitaal afdrukken | |
|
|
Geschikt voor Wave | |
 | Oeko-Tex | |
 | Speciale kleuren van 500 m | |
Wasvoorschriften
Optische en zonnecoëfficiënten (± 5%, DIN EN 410)
| stijf | |||||||
| Kleur |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|

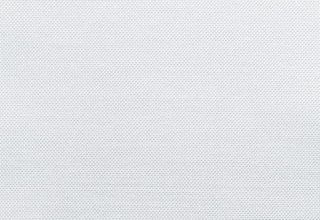

| Kleur 111 | Tv(%) 11.0 | Ts(%) 11.0 | Rs(%) 50.0 | As(%) 39.0 | Tuv(%) 11.0 | Fc() 0.61 | gtot() 0.44 |

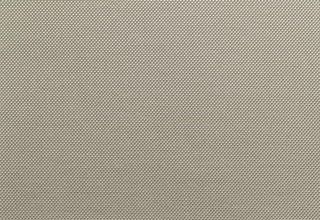

| Kleur 116 | Tv(%) 6.0 | Ts(%) 8.0 | Rs(%) 50.0 | As(%) 42.0 | Tuv(%) 6.0 | Fc() 0.62 | gtot() 0.43 |

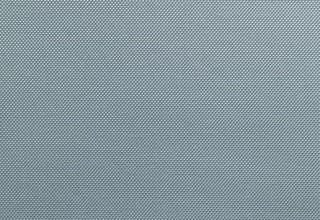

| Kleur 119 | Tv(%) 7.0 | Ts(%) 9.0 | Rs(%) 49.0 | As(%) 42.0 | Tuv(%) 7.0 | Fc() 0.61 | gtot() 0.44 |

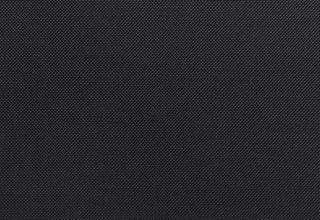

| Kleur 911 | Tv(%) 3.0 | Ts(%) 6.0 | Rs(%) 48.0 | As(%) 46.0 | Tuv(%) 4.0 | Fc() 0.62 | gtot() 0.44 |
| zacht | |||||||
| Kleur |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|
| Kleur 111 | Tv(%) 12.0 | Ts(%) 11.0 | Rs(%) 41.0 | As(%) 48.0 | Tuv(%) 12.0 | Fc() 0.68 | gtot() 0.47 |
| Kleur 116 | Tv(%) 7.0 | Ts(%) 9.0 | Rs(%) 38.0 | As(%) 53.0 | Tuv(%) 7.0 | Fc() 0.69 | gtot() 0.49 |
| Kleur 119 | Tv(%) 6.0 | Ts(%) 8.0 | Rs(%) 39.0 | As(%) 53.0 | Tuv(%) 6.0 | Fc() 0.69 | gtot() 0.48 |
| Kleur 911 | Tv(%) 5.0 | Ts(%) 7.0 | Rs(%) 40.0 | As(%) 53.0 | Tuv(%) 5.0 | Fc() 0.67 | gtot() 0.47 |
Fc + gtot: Waarde berekend met glas: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Downloads
Op aanvraag:
NFPA 701
M1 (NF P 92-503/5/7)
